Kilma Easy2
Kilma Easy2 distribution module in kit
Series 3691.C

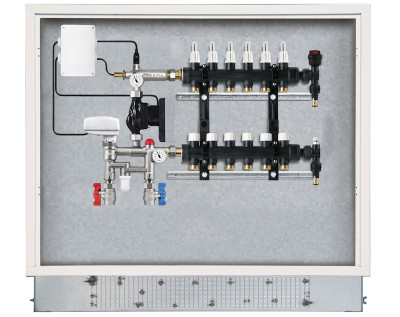

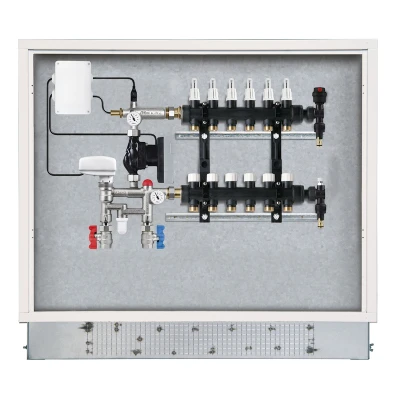

Kilma Easy2 distribution module in kit
Distribution module pre-assembled in wall flush mounted kit suitable for hydronic heating and cooling circuits.
The Module can be electrically connected to the thermoregulators in the Kilma Set 2 series.
Insulation casing, of the brass parts, not included.
| Centre distance between attachments on the plant side 111 mm. |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections. |
Download
Kilma Easy2
| Code | Measure | Ways | Width (mm) | Height (mm) | Pack | Outer | Cat. | € |
| 36910250 | 1" | 2+2 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910250_LastPrice|| |
| 36910350 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910350_LastPrice|| |
| 36910450 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910450_LastPrice|| |
| 36910550 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910550_LastPrice|| |
| 36910650 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910650_LastPrice|| |
| 36910750 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||36910750_LastPrice|| |
| 36910850 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||36910850_LastPrice|| |
| 36910950 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||36910950_LastPrice|| |
| 36911050 | 1" | 10+10 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911050_LastPrice|| |
| 36911150 | 1" | 11+11 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911150_LastPrice|| |
| 36911250 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911250_LastPrice|| |
| 36911350 | 1" | 13+13 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911350_LastPrice|| |
| 36911450 | 1" | 14+14 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911450_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
Box depth 110 ÷ 160 mm
Insulation casing
| Code | Pack | Outer | Cat. | € |
| 37050002* | 1 | 1 | 30.02 | ||37050002_LastPrice|| |
* Specific insulation casing for mixing valve, circulator and well
The case size enables installation of the Bypass unit code 910M.06.00 (except for the 14-branch composition).
Use RBM fittings with Euroconus G 3/4” thread 217.A and 224.A series for pipe connection to the manifold.
Product specific for summer/winter radiant climate control.
