KILMA-EVO-RM4
Climate Control Unit - Kilma-Evo-RM4
Series 770.C

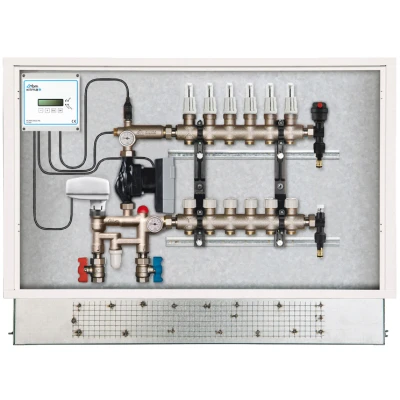

Climate Control Unit Kilma-Evo-RM4 series
| Control distribution unit for low temperature circuits consisting of: specific manifolds, circulation pump, boiler recirculating by-pass and mixing unit integrated together: modulating regulation by means of injection unit with actuator, electronic climate control unit, safety thermostat, external probe, internal probe (low temperature delivery) with well, all housed in a recessed metal case with locking hatch; Including: supply control flow meters, thermostatically controlled valves on the return line, 1 automatic air vent valve/degasser, equipped with connection for system filling, 1 air manual discharge unit, system loading, 2 shut-off ball valves, thermometers for reading delivery and return temperatures. |
| Centre distance between attachments on the plant side 111 mm. |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections |
Download
Kilma EVO-RM4
| Code | Size | Ways | Width (mm) | Height (mm) | Box | Carton | Cat. | € |
| 07700680 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07700680_LastPrice|| |
| 07710680 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07710680_LastPrice|| |
| 07720680 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07720680_LastPrice|| |
| 07730680 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||07730680_LastPrice|| |
| 07740680 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07740680_LastPrice|| |
| 07750680 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07750680_LastPrice|| |
| 07760680 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07760680_LastPrice|| |
| 07770680 | 1" | 10+10 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||07770680_LastPrice|| |
| 07780680 | 1" | 11+11 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07780680_LastPrice|| |
| 07781280 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07781280_LastPrice|| |
| 07781380 | 1" | 13+13 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||07781380_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
Insulation casing
| Code | Box | Carton | Cat. | € |
| 37050002* | 1 | 1 | 30.02 | ||37050002_LastPrice|| |
* Specific insulation casing for mixing valve, circulator and well
Le dimensioni della cassetta consentono l’installazione del gruppo By-pass cod. 09100600
Use Euroconus fittings with G 3/4" thread (see page
