Nilo

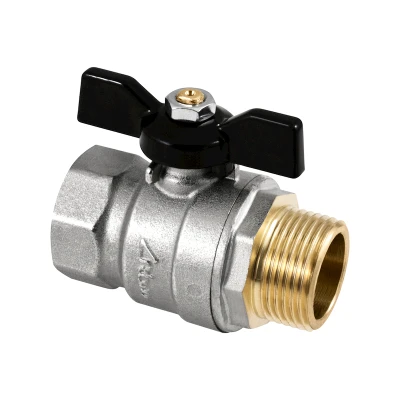

Full bore ball valve with butterfly handle
Series 2960.C
Full bore ball valve, butterfly handle operated, MF connections. Suitable for water, water+glycol.
Nickel-plated brass body. |
Thick chrome plated brass ball. |
PTFE seal. |
Elastomer OR gaskets. |
ISO 7 (UNI EN 10226) threaded connections. |
Operating temperature with water -20 ÷ +120 °C (without steam) |
Download
Code | Size | PN | Box | Carton | Cat. |
29600370 | 3/8" | 50 | 10 | 40 | 08.01 |
29600470 | 1/2" | 40 | 10 | 80 | 08.01 |
29600570 | 3/4" | 40 | 5 | 50 | 08.01 |
29600670 | 1" | 40 | 5 | 40 | 08.01 |
29600770 | 1"1/4 | 30 | 4 | 24 | 08.01 |
ISO 7 (UNI EN 10226) threaded connections.
