PA-SQ | Series 5312.D

PA-SQ

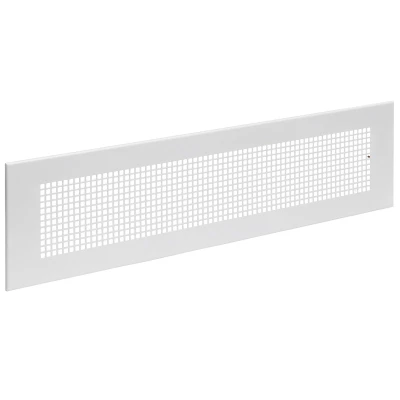

Square hole grating L=5mm

Series 5312.D
Square hole grid L=5mm with perimeter folds for max rigidity
  • Quick coupling system with direct coupling by means of special rear pins and spring clips on the front of the 5108.A and 4212 series plenums to guarantee:
  • 0-60mm variable radius to correct any plenum/wall misalignment.
  • Full air flow even also in case of underneath/side connection without affecting the plenum minimum insertion depth.
  • Rectangular steel grid with flat, smooth and even single-body front surface. Design with 32 mm perimeter and internal part with L=5mm holes for optimal flow distribution over the whole surface. Optimised structure for maximum rigidity. RAL9016 painting with surface treatment for maximum corrosion resistance.

    Square mesh room grids

    Code Model Description Pack Outer Cat.
    5312.54.14 PASQ-5414 540x140 mm, int 480x80 mm, RAL9016 1 1 30.09 ||53125414_LastPrice||
