Ris

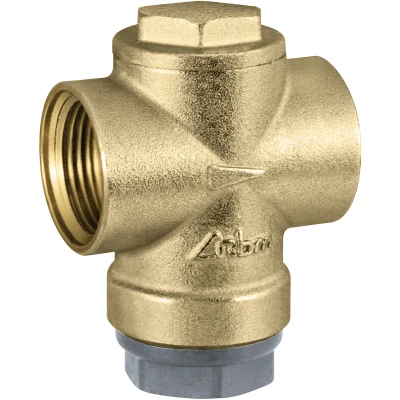

Pressure reducing valve with fixed calibration, single seat, compensated piston-operated
Series 1139.C
Pressure reducing valve with fixed calibration, single seat, compensated piston-operated. Suitable for water conveyance.
Brass body. |
Elastomer seals. |
Threaded connections FF UNI-EN-ISO 228. |
Nominal pressure 16 Bar |
Max upstream pressure 16 Bar |
Fixed downstream pressure 3 bar |
Max operating temperature 80 °C |
Fixed calibration 3 Bar |
Download
Pressure reducing valve with fixed calibration
Code | Measure | Model | Pack | Outer | Cat. | € |
11390390 | G 3/8" | Ris | 1 | 30 | 06.01 | 18,91 |
11390490 | G 1/2" | Ris | 1 | 30 | 06.01 | ||11390490_LastPrice|| |
11390590 | G 3/4" | Ris | 1 | 30 | 06.01 | ||11390590_LastPrice|| |
Compact.
Version without pressure gauge holder connection.
