Flanged series meter
Series 1093.B

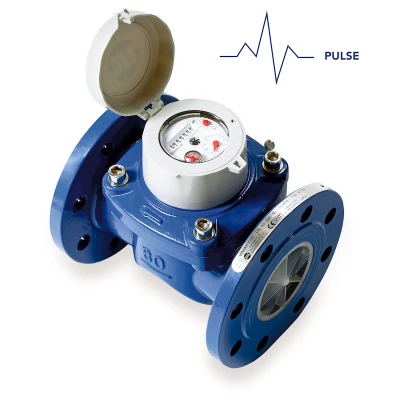

Woltmann - flanged series meter equipped with impulse-sender
Domestic cold water Split series.
Set up for remote reading.
| Woltmann meters feature separately installed flow rate detector and electronic module for data remote control (optional), which is wall-mounted. |
| Cast iron case painted internally and externally with epoxy paint |
| Transparent mineral glass disk |
| Plastic cover with internal metal shield |
| Internal mechanism in anti-scaling and wear-resistant plastic material |
| PN16 flanged couplings |
| Installation on HORIZONTAL and VERTICAL pipes |
| Operating temperature max 50 °C |
| Nominal pressure (PN) 16 Bar |
| Reed cable length 1m |
Download
Certifications:
Certified for use with drinking water, in accordance with It. Ministerial Decree 174/2004
Features:
Woltmann - flanged series meter equipped with impulse-sender
| Code | Model | Measure | Q3(m³/h) | impulse/l | Pack | Outer | Cat. | € |
| 10930902 | Meter VC300 | DN 50 | 40 | 100 | 1 | 1 | 03.03 | ||10930902_LastPrice|| |
| 10931002 | Meter VC500 | DN 65 | 63 | 100 | 1 | 1 | 03.03 | ||10931002_LastPrice|| |
| 10931102 | Meter VC1200 | DN 80 | 100 | 100 | 1 | 1 | 03.03 | ||10931102_LastPrice|| |
| 10931302 | Meter VC2300 | DN 100 | 160 | 100 | 1 | 1 | 03.03 | ||10931302_LastPrice|| |
| 10931402 | Meter VC2500 | DN 125 | 160 | 100 | 1 | 1 | 03.03 | ||10931402_LastPrice|| |
| 10931502 | Meter VC2500 | DN 150 | 250 | 1000 | 1 | 1 | 03.03 | ||10931502_LastPrice|| |
| 10931702 | Meter VC3250 | DN 200 | 400 | 1000 | 1 | 1 | 03.03 | ||10931702_LastPrice|| |
Installation on HORIZONTAL and VERTICAL pipes
To remotely control the data read by the meter, ordering "Twin Pulse" type electronics is recommended if "H-S/HC-S" type electronics are not already installed
Spare impulse-sender available, code 2554.00.02 (refer to spare parts list).
