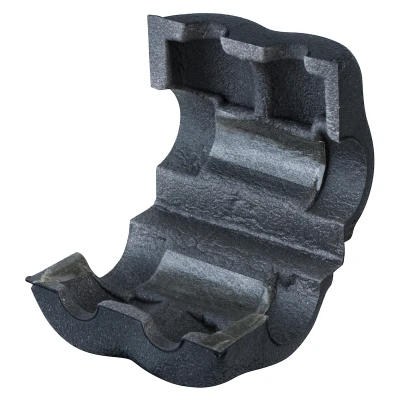

Insulation shell for RBM Single Monoblock manifold
Series 1150
Insulation shell for RBM Single Monoblock manifold made up from expanded polyethylene half-bearings with external antiscratch coating.
Complete with clips to fix half-bearings.
| Fire behaviour class I |
| Density 33 kg/m³ |
| Max operating temperature -40 ÷ +90 °C |
Download
Single Monoblock manifold thermal shell
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 11500500 | 3/4" | 2 | 5 | 5 | 04.01 | ||11500500_LastPrice|| |
| 11500510 | 3/4" | 3 | 5 | 5 | 04.01 | ||11500510_LastPrice|| |
| 11500520 | 3/4" | 4 | 5 | 5 | 04.01 | ||11500520_LastPrice|| |
| 11500530 | 3/4" | 5 | 1 | 5 | 04.01 | ||11500530_LastPrice|| |
| 11500540 | 3/4" | 6 | 5 | 5 | 04.01 | ||11500540_LastPrice|| |
| 11500550 | 3/4" | 7 | 1 | 20 | 04.01 | ||11500550_LastPrice|| |
| 11500560 | 3/4" | 8 | 1 | 1 | 04.01 | ||11500560_LastPrice|| |
| 11500600 | 1" | 2 | 1 | 5 | 04.01 | ||11500600_LastPrice|| |
| 11500610 | 1" | 3 | 1 | 5 | 04.01 | ||11500610_LastPrice|| |
| 11500620 | 1" | 4 | 1 | 5 | 04.01 | ||11500620_LastPrice|| |
| 11500630 | 1" | 5 | 1 | 5 | 04.01 | ||11500630_LastPrice|| |
| 11500640 | 1" | 6 | 1 | 5 | 04.01 | ||11500640_LastPrice|| |
| 11500650 | 1" | 7 | 1 | 1 | 04.01 | ||11500650_LastPrice|| |
| 11500660 | 1" | 8 | 1 | 1 | 04.01 | ||11500660_LastPrice|| |
| 11500680 | 1" | 10 | 1 | 30 | 04.01 | ||11500680_LastPrice|| |
| 31020720 | 1"1/4 | 2 | 1 | 15 | 04.01 | ||31020720_LastPrice|| |
| 31020730 | 1"1/4 | 3 | 1 | 10 | 04.01 | ||31020730_LastPrice|| |
Thermal insulation suitable for manifolds with junction connections 37 mm centre distance.
