Series 1253

Brackets with press fittings for Tita-fix multilayer pipe

Series 1253

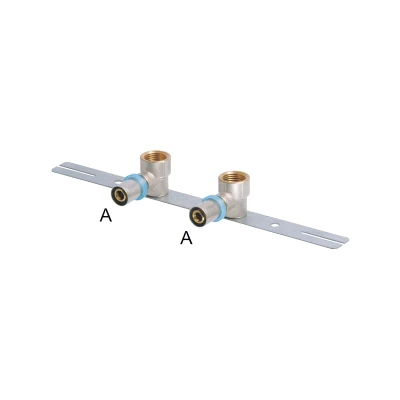

Brackets with press fitting for Tita-fix multilayer pipe.
  • Multi-clamp fitting.
  • Compatible with clamps series:
  • TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2;
  • TH, H, B for Ø 26x3;
  • TH, H for Ø 32x3;
  • TH for Ø 40x3.5 - 50x4 e 63x4.5
  • Externally nickel-plated brass body
    Elastomer seals
    Stainless steel pipe clamping bush
    Dielectric pipe clamp cover in PE
    Threaded connection F UNI-EN-ISO 228
    Galvanised steel bracket
    Fittings applied at prefixed interest
    Fittings free to rotate
    Connection G 1/2" F

    Certifications:

    Brackets with press fittings for multilayer pipe

    Code Size A Centre distance (mm) Pack Outer Cat.
    1253.04.00 16x2 80 5 20 10.02 ||12530400_LastPrice||
    1253.04.20 16x2 150 5 20 10.02 ||12530420_LastPrice||
    1253.04.10 16x2 160 5 20 10.02 ||12530410_LastPrice||
    1253.04.60 20x2 150 5 20 10.02 ||12530460_LastPrice||
    1253.04.50 20x2 160 5 20 10.02 ||12530450_LastPrice||

    Size A: Outside Ø x pipe thickness
