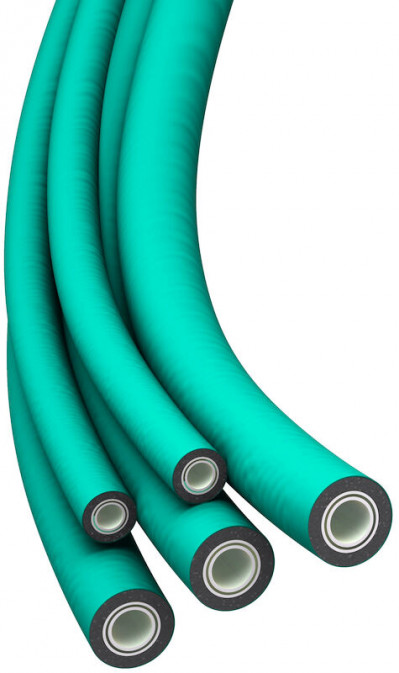

RBM Tita-fix PE-RT multilayer pipe with anti-condensation conduit
Series 1544.C
PE-RT RBM Tita-fix multilayer pipe externally insulated with closed cell expanded polyethylene anti-condensation, CFC-free, flame retardant.
Caratteristiche tubo come serie 1545-1546.
| Pipe features: |
| Composition PE-RT/Al/PE-RT |
| White |
| Poper 10 Bar |
| Tmal 95 °C |
| Duration at operating conditions ~ 50 years |
| Type: PE-RT |
| Insulating conduit features: |
| Density 35 kg/m³ |
| Thermal conductivity at 40 °C |
| Insulation 0.038 W/mK |
| insulation+pipe (average value) 0.062 W/mK |
| Steam permeability μ 5.482 |
| Insulation thickness 10 mm |
Download
Certifications:
Compliant with: EN ISO 21003
DM 174/04
Insulation thickness compliant with law 09 January 1991 n. 10 and valid for pipes installed in heated premises and/or facilities neither facing outside or unheated rooms.
PE-RT RBM Tita-fix multilayer pipe in roll with thermal anti-condensation insulation
| Code | Pipe size (mm) | Aluminium th. (mm) | Roll (m) | Box (m) | Pallet (m) | Cat. | €/m |
| 15441640 | 16x2 | 0,20 | 50 | 1 | 550 | 10.01 | ||15441640_LastPrice|| |
| 15442040 | 20x2 | 0,30 | 50 | 1 | 450 | 10.01 | ||15442040_LastPrice|| |
| 15442640 | 26x3 | 0,40 | 50 | 1 | 450 | 10.01 | ||15442640_LastPrice|| |
| 15443240 | 32x3 | 0,40 | 25 | 1 | 250 | 10.01 | ||15443240_LastPrice|| |
Size: Outside Ø x pipe thickness
Suitable for hydronic refrigeration and heating systems.
