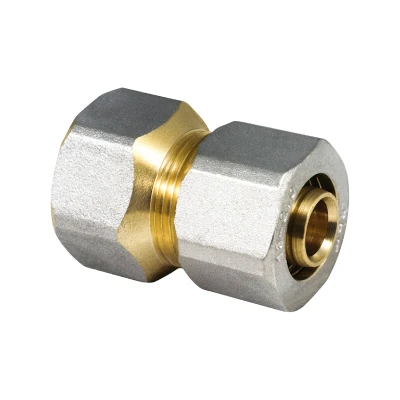

Straight compression fittings for multilayer pipe - female gas connection
Series 1929
Compression fittings for straight multilayer pipe - female gas connection
| Nickel plated brass body and nut. |
| Brass pipe clip ring nut. |
| Elastomer gaskets. |
| Size A: Pipe outside diameter |
| Size B: Thread UNI-EN-ISO 228. |
| Max operating temperature 95 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#s# #s#
#s# #s#
Compression fittings for straight multilayer pipe - female gas connection
| Code | Size A | Size B | Box | Carton | Cat. | € |
| 19291602 | 16x2 | 1/2" F | 10 | 250 | 10.02 | ||19291602_LastPrice|| |
| 19291612 | 16x2 | 3/4" F | 10 | 160 | 10.02 | ||19291612_LastPrice|| |
| 19291802 | 18x2 | 1/2" F | 10 | 160 | 10.02 | ||19291802_LastPrice|| |
| 19291812 | 18x2 | 3/4" F | 10 | 140 | 10.02 | ||19291812_LastPrice|| |
| 19292002 | 20x2 | 1/2" F | 10 | 150 | 10.02 | ||19292002_LastPrice|| |
| 19292012 | 20x2 | 3/4" F | 10 | 140 | 10.02 | ||19292012_LastPrice|| |
| 19292612 | 26x3 | 3/4" F | 5 | 70 | 10.02 | ||19292612_LastPrice|| |
| 19292622 | 26x3 | 1" F | 5 | 70 | 10.02 | ||19292622_LastPrice|| |
| 19293222 | 32x3 | 1" F | 5 | 50 | 10.02 | ||19293222_LastPrice|| |
Size A: Outside Ø x pipe thickness
Size B: thread UNI-EN-ISO 228
Suitable for polyethylene and multilayer pipe.
