Series 1967

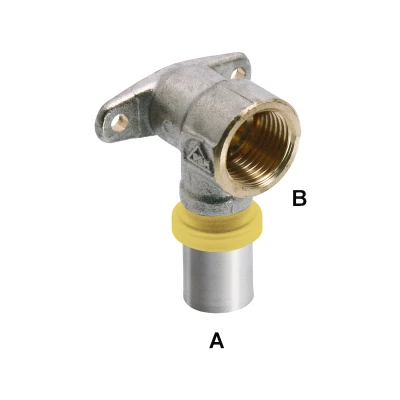

Flanged elbow press fitting for Tita-gas multilayer pipe - standard length

Series 1967
Press fitting for gas for multilayer pipe - flanged elbow - standard length F gas connection

Suitable for the implementation of networks transporting gaseous fuels, according to UNI 7129 and UNI 11344

Metal-plastic multilayer pipe systems and fittings for transporting gaseous fuels for internal plants

Fitting compatible with series TH clamps.
Externally nickel-plated brass body
HNBR seals (complying with UNI EN 682)
Stainless steel pipe clamping bush
Dielectric pipe clamp cover in PE
Threaded connection F UNI-EN-ISO 228
Max operating pressure 0.5 Bar

Certifications:

Certified system IIP UNI

Press fitting for gas for multilayer pipe - flanged elbow - standard length F gas connection

Code Size A Size B Pack Outer Cat.
1967.04.00 16x2 1/2" F 10 40 10.02 ||19670400_LastPrice||
1967.04.10 20x2 1/2" F 10 40 10.02 ||19670410_LastPrice||

Size A: Outside Ø x pipe thickness.
