MZ7 Modular H.T. zone module Basic
Series 2418.B

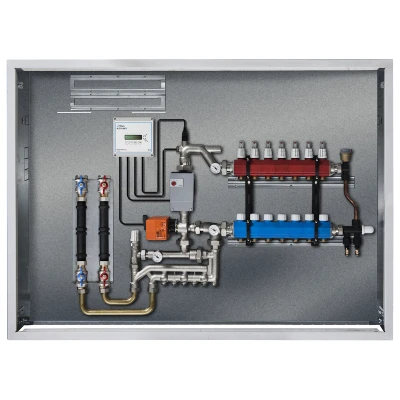

MZ7 Modular H.T. zone module Basic. Heating/cooling. Distribution manifold, High and Low Temperature.
| Compared to MZ7 Modular Basic, this module is additionally equipped with a 3-way manifold for H.T. water distribution. |
| Primary fluid max operating temperature 90 °C |
| Max operating pressure 6 Bar |
Download
MZ7 Modular A.T. Basic
| Code | Measure | Ways | Width(mm) | Pack | Outer | Cat. | € |
| 24180650 | 1" | 2 | 1090 | 1 | 1 | 03.01 | ||24180650_LastPrice|| |
| 24190650 | 1" | 3 | 1090 | 1 | 1 | 03.01 | ||24190650_LastPrice|| |
| 24200650 | 1" | 4 | 1190 | 1 | 1 | 03.01 | ||24200650_LastPrice|| |
| 24210650 | 1" | 5 | 1190 | 1 | 1 | 03.01 | ||24210650_LastPrice|| |
| 24220650 | 1" | 6 | 1290 | 1 | 1 | 03.01 | ||24220650_LastPrice|| |
| 24230650 | 1" | 7 | 1290 | 1 | 1 | 03.01 | ||24230650_LastPrice|| |
| 24240650 | 1" | 8 | 1390 | 1 | 1 | 03.01 | ||24240650_LastPrice|| |
| 24250650 | 1" | 9 | 1390 | 1 | 1 | 03.01 | ||24250650_LastPrice|| |
| 24260650 | 1" | 10 | 1490 | 1 | 1 | 03.01 | ||24260650_LastPrice|| |
| 24270650 | 1" | 11 | 1490 | 1 | 1 | 03.01 | ||24270650_LastPrice|| |
| 24280650 | 1" | 12 | 1590 | 1 | 1 | 03.01 | ||24280650_LastPrice|| |
| 24290650 | 1" | 13 | 1590 | 1 | 1 | 03.01 | ||24290650_LastPrice|| |
high-efficiency, variable-flow rate circulator EEI<0.23 - ERP 622/2012
Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G3/4" threaded connections.
Centre distance of connections on the diverter line of the high temperature manifold 37 mm, RBM Standard threaded connections.
External temperature probe available, code 3502.00.12
