Series 2576

Single jet turbine volumetric meter kit

Series 2576
Single jet turbine volumetric meter kit, hot water for low flow rates, fitted with impulse-sender device with direct m-bus output.
The turbine volumetric meter is single-jet, dry dial type; it is provided to meter the volume of (cold and hot) domestic water used. This version of meter is equipped with a compact wireless radio module for remote transmission of consumption data.
Furthermore, instruments can be read without directly accessing any flats, and this is even easier with instruments installed in hard-to-access locations. Since no wiring is required, this solution offers significant savings in terms of costs and time, especially in the case of already existing buildings.
Printed brass case, protected with nickel galvanic treatment
Clock device inserted in a hermetically sealed vacuum case
Double mounting by means of anti-magnetic stainless steel pins; it allows the turbine to rotate in all flow rate and installation conditions
Protection against the action of external magnets
Adequate surface inlet filter
Installation on HORIZONTAL and VERTICAL pipes
Operating temperature max 50 °C (DCW) / 90 °C (DHW)
Nominal pressure (PN) 16 Bar
Radio module coil duration 12 years + 1
Automatic radio activation
868 MHz radio frequency interface
M-Bus wireless radio interface in S1/T1 (one-directional) / S2/T2 (two-directional) mode

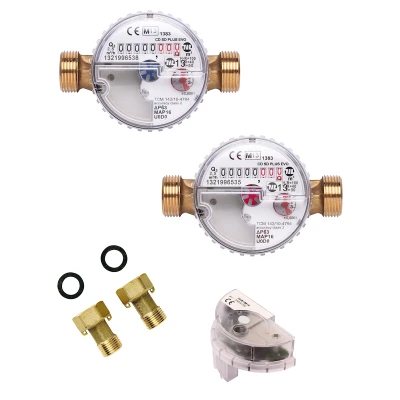

  • Meter kit including:
  • Meter;
  • Compact radio module;
  • Fitting pair.
  • Kit components supplied in separate packages.
  • Certifications:

    Certified for use with drinking water, in accordance with It. Ministerial Decree 174/2004

    Features:

    Kit including low flow DCW Domestic Cold Water meter - wireless

    Code Model Measure Q3 (m³/h) impulse/l Pack Outer Cat.
    25760400 **waiting_for_translation** 1/2" 1,5 Automatic 1 1 03.03 ||25760400_LastPrice||
    25760410 **waiting_for_translation** 1/2" 1,5 Automatic 1 1 03.03 ||25760410_LastPrice||
    25760500 **waiting_for_translation** 3/4" 2,5 Automatic 1 1 03.03 ||25760500_LastPrice||

    Kit including Low flow DHW Domestic Hot Water meter - wireless

    Code Model Measure Q3 (m³/h) impulse/l Pack Outer Cat.
    25770400 **waiting_for_translation** 1/2" 1,5 Automatic 1 1 03.03 ||25770400_LastPrice||
    25770410 **waiting_for_translation** 1/2" 1,5 Automatic 1 1 03.03 ||25770410_LastPrice||
    25770500 **waiting_for_translation** 3/4" 2,5 Automatic 1 1 03.03 ||25770500_LastPrice||

    Spare parts - Kit components

    Code Model Pack Outer Cat.
    25520502 **waiting_for_translation** 1 1 03.03 ||25520502_LastPrice||
    25520512 **waiting_for_translation** 1 1 03.03 ||25520512_LastPrice||
    25520602 **waiting_for_translation** 1 1 03.03 ||25520602_LastPrice||
    25530502 **waiting_for_translation** 1 1 03.03 ||25530502_LastPrice||
    25530512 **waiting_for_translation** 1 1 03.03 ||25530512_LastPrice||
    25530602 **waiting_for_translation** 1 1 03.03 ||25530602_LastPrice||
    09980400 Coppia raccordi -- 1/2” 1 1 03.03 ||09980400_LastPrice||
    09980500 Coppia raccordi -- 3/4" 1 1 03.03 ||09980500_LastPrice||
    25510002 **waiting_for_translation** 1 1 60.01 ||25510002_LastPrice||
