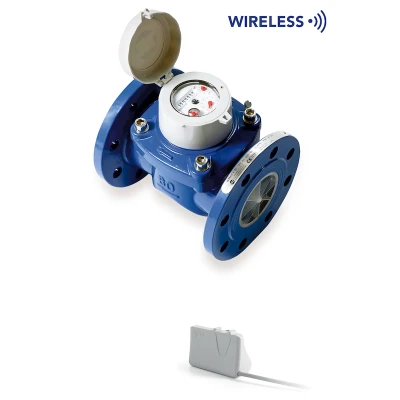

Series 2580

Woltmann meter

Series 2580
Woltmann meter.

Domestic cold water Split series. This version of meter is equipped with a wireless radio module for remote transmission of consumption data.

Furthermore, instruments can be read without directly accessing any flats, and this is even easier with instruments installed in hard-to-access locations. Since no wiring is required, this solution offers significant savings in terms of costs and time, especially in the case of already existing buildings.

Meter kit including:
Flanged meter complete with reed impulse-sender connector;
Arrow radio module;
Cast iron case painted internally and externally with epoxy paint
Transparent mineral glass disk
Plastic cover with internal metal shield
Internal mechanism in anti-scaling and wear-resistant plastic material
PN16 flanged couplings
Installation on HORIZONTAL and VERTICAL pipes
Operating temperature max 50 °C
Nominal pressure (PN) 16 Bar
Reed cable length 1m
868 MHz radio frequency interface
M-Bus wireless radio interface in S1/T1 (one-directional) / S2/T2 (two-directional) mode
  • Meter kit including:
  • Flanged meter complete with reed impulse-sender connector;
  • Arrow radio module;
  • Certifications:

    Certified for use with drinking water, in accordance with It. Ministerial Decree 174/2004

    Features:

    Woltmann wireless flanged series meter

    Code Model Measure Q3 (m³/h) Impulso/l Pack Outer Cat.
    2580.09.00 VC300 WiFi DN50 40 100 1 1 03.03 ||25800900_LastPrice||
    2580.10.00 VC500 WiFi DN65 63 100 1 1 03.03 ||25801000_LastPrice||
    2580.11.00 VC1200 WiFi DN80 100 100 1 1 03.03 ||25801100_LastPrice||
    2580.13.00 VC2300 WiFi DN100 160 100 1 1 03.03 ||25801300_LastPrice||
    2580.14.00 VC2500 WiFi DN125 160 100 1 1 03.03 ||25801400_LastPrice||
    2580.15.00 VC2500 WiFi DN150 250 1000 1 1 03.03 ||25801500_LastPrice||
    2580.17.00 VC3250 WiFi DN200 400 1000 1 1 03.03 ||25801700_LastPrice||

    Spare parts - Kit components

    Code Model Measure Q3 (m³/h) Impulso/l Pack Outer Cat.
    1093.09.02 Meter VC300 DN 50 40 100 1 1 03.03 ||10930902_LastPrice||
    1093.10.02 Meter VC500 DN 65 63 100 1 1 03.03 ||10931002_LastPrice||
    1093.11.02 Meter VC1200 DN 80 100 100 1 1 03.03 ||10931102_LastPrice||
    1093.13.02 Meter VC2300 DN 100 160 100 1 1 03.03 ||10931302_LastPrice||
    1093.14.02 Meter VC2500 DN 125 160 100 1 1 03.03 ||10931402_LastPrice||
    1093.15.02 Meter VC2500 DN 150 250 1000 1 1 03.03 ||10931502_LastPrice||
    1093.17.02 Meter VC3250 DN 200 400 1000 1 1 03.03 ||10931702_LastPrice||
    2551.00.12 Radio module with impulse inputs - - - 1 1 60.01 ||25510012_LastPrice||

    (-) price on the spare parts price list
