Wireless Microclima Split HC Ultrasuoni meter kit
Microclima Split meters for heating and air conditioning systems feature separately installed flow rate detector and electronic module for data processing/storage and remote control (optional), which is wall-mounted.
Furthermore, instruments can be remotely read without directly accessing any flats, and this is easier if instruments are installed in hard-to-access locations.
The meter is ultrasound type (without moving parts) with coarse filtering mesh fitted to the fluid inlet connection; the assembly fittings (only for threaded versions) allow for easy maintenance. They are designed for metering the heating and air conditioning thermal energy by recording the readings in separate memory logs.
| Meter kit including: |

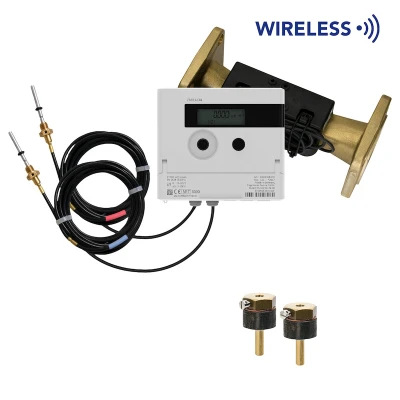

| Wireless ultrasonic meter, electronics and pair of temperature probes; |
| Fitting pair (only threaded versions) |
| Probe holder well pair; |
| Plug M10x1. |
| Operating temperature +5 - +130 °C |
| Nominal pressure (PN) 16 Bar (threaded) - 25 Bar (flanged) |
| Electronic unit dimensions (lxhxd): 123.7x198x45.8 |
| Installation on HORIZONTAL pipes return lines |
| PT500 ø 6mm probes - cable length 3m - dry assembly |
| Battery life: 10 years (replaceable battery). External feeder code 2968.00.02 can be supplied on request |
| 868 MHz radio frequency interface |
| M-Bus wireless radio interface in S1/T1 (one-directional) / S2/T2 (two-directional) mode |
Download
Features:
Microclima Split Ultrasuoni high-flow meter kit equipped with 2 impulsive inputs for "HC" wireless heating/cooling interface
| Code | Model | Measure | NQ (m³/h) | impulse/l | Pack | Outer | Cat. | € |
| 29540800 | US HC100 Wi-Fi | 1"1/2 | 10 | 10 | 1 | 1 | 03.03 | ||29540800_LastPrice|| |
| 29540900* | US HC150 Wi-Fi | DN 50 FL | 15 | 25 | 1 | 1 | 03.03 | ||29540900_LastPrice|| |
| 29541000* | US HC250 Wi-Fi | DN 65 FL | 25 | 25 | 1 | 1 | 03.03 | ||29541000_LastPrice|| |
| 29541100* | US HC400 Wi-Fi | DN 80 FL | 40 | 100 | 1 | 1 | 03.03 | ||29541100_LastPrice|| |
| 29541300* | US HC600 Wi-Fi | DN 100 FL | 60 | 100 | 1 | 1 | 03.03 | ||29541300_LastPrice|| |
* Flanged connections
Spare parts - Kit components
| Code | Model | Pack | Outer | Cat. | € |
| 15680972 | Contatore US HC100 Wi-Fi -- 1”1/2 | 1 | 1 | 03.03 | ||15680972_LastPrice|| |
| 15680982 | Contatore US HC150 Wi-Fi -- - DN 50 | 1 | 1 | 03.03 | ||15680982_LastPrice|| |
| 15681072 | Contatore US HC250 Wi-Fi -- - DN 65 | 1 | 1 | 03.03 | ||15681072_LastPrice|| |
| 15681172 | Contatore US HC400 Wi-Fi -- - DN 80 | 1 | 1 | 03.03 | ||15681172_LastPrice|| |
| 15681372 | Contatore US HC600 Wi-Fi -- - DN 100 | 1 | 1 | 03.03 | ||15681372_LastPrice|| |
| 09980800 | Coppia raccordi -- 1”1/2 | 1 | 1 | 03.03 | ||09980800_LastPrice|| |
| 16840002 | Coppia pozzetti portasonda -- - DN 32 ÷ DN 65 | 1 | 1 | 03.03 | ||16840002_LastPrice|| |
| 16840012 | Coppia pozzetti portasonda -- - DN 80 ÷ DN 125 | 1 | 1 | 03.03 | ||16840012_LastPrice|| |
| 25560002 | Plug M10x1 | 1 | 1 | 03.03 | ||25560002_LastPrice|| |
To be installed on HORIZONTAL AND VERTICAL pipes return and delivery lines
Radio activation to be carried out on site (refer to the instructions).
