Series 3420

Kayma heating cost allocator

Series 3420
Kayma heating cost allocator

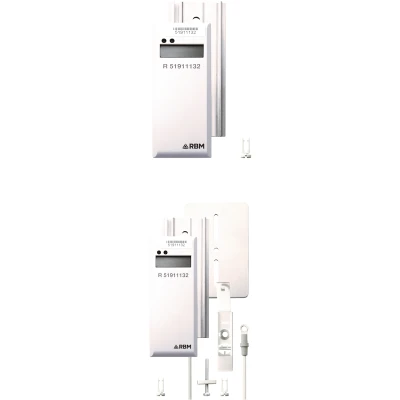

Electronic heating cost allocator with dual sensor technology, one for the radiator and one for the room. Supplied complete with plate and seal.
Equipped with a tamper-proof device, both mechanical with a special seal, and electronical through a special internal contact.
3V lithium battery power supply, service life 11 + 1 years
User interface display for data reading, 7 digits + special characters
Operating limits of measuring sensors +35 - +95°C (standard vers.) +35 - +105°C (remote probe vers.)
Radio communication on 868 Mhz and data collection system with remote reading technology
Reading via radio or LCD
MBUS Wireless radio interface in T1 or S1 mode
Dimensions (LxHxd) 38x92x30 mm
Remote probe length 2m

Certifications:

Type-approved HKVO A1.01.2013 as per standard EN 834

Ripartitore di calore con piastra di fissaggio e sigillo

Code Pack Cat.
34200050 1 03.04 ||34200050_LastPrice||

Kayma S Heating cost allocator with remote probe

Code Pack Outer Cat.
34210000 1 1 03.04 ||34210000_LastPrice||

Heating cost allocator spare parts

Code Model Pack Outer Cat.
34170002 Fixing plate 1 40 03.04 ||34170002_LastPrice||
34180002 Heating cost allocator external probe 1 1 03.04 ||34180002_LastPrice||
34190002 Seal 1 1 03.04 ||34190002_LastPrice||
