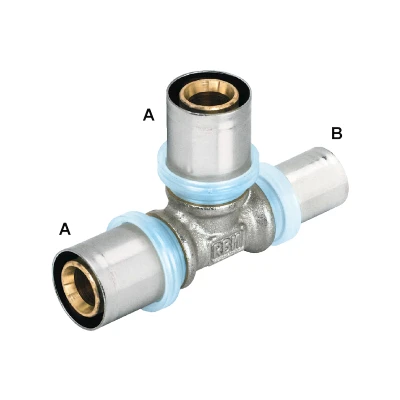

Press fitting for multilayer 'T' pipe with reduced side way
Series 851.A
Press fitting for multilayer pipe - T-shaped - reduced lateral way
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating pressure 95°C |
| Max operating pressure 10 Bar |
Download
Certifications:
DHW
#ss#
#ss#
#ss#
#ss#
Press fitting for multilayer pipe - T-shaped - reduced lateral way
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 08512010 | 20x2 | 16x2 | 10 | 80 | 10.02 | ||08512010_LastPrice|| |
| 08512610 | 26x3 | 16x2 | 5 | 60 | 10.02 | ||08512610_LastPrice|| |
| 08512620 | 26x3 | 20x2 | 5 | 60 | 10.02 | ||08512620_LastPrice|| |
| 08513210 | 32x3 | 16x2 | 5 | 40 | 10.02 | ||08513210_LastPrice|| |
| 08513200 | 32x3 | 20x2 | 5 | 40 | 10.02 | ||08513200_LastPrice|| |
| 08513220 | 32x3 | 26x3 | 5 | 40 | 10.02 | ||08513220_LastPrice|| |
Size A-B: Outside Ø x pipe thickness
