Raccordo a pressare per tubo multistrato diritto ridotto
Series 890

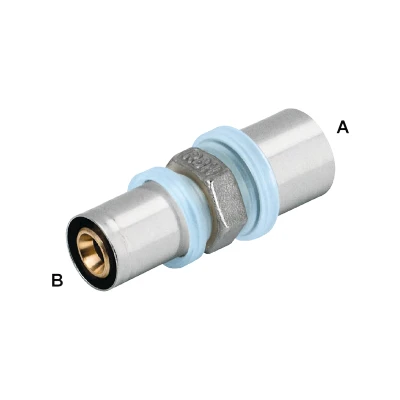

Press fitting for multilayer pipe- straight - reduced.
Multi-clamp fitting. Compatible with clamps series: TH, H, U, B, F for Ø 16x2 - 18x2 and 20x2; TH, H, B for Ø 26x3; TH, H for Ø 32x3; TH for Ø 40x3.5 - 50x4 e 63x4.5
| Externally nickel-plated brass body |
| Elastomer seals |
| Stainless steel pipe clamping bush |
| Dielectric pipe clamp cover in PE |
| Max operating pressure 95°C |
| Max operating pressure 10 Bar |
Download
Certifications:
Press fitting for multilayer pipe - straight - reduced route
| Code | Size A | Size B | Pack | Outer | Cat. | € |
| 890.18.10 | 18x2 | 16x2 | 10 | 240 | 10.02 | ||08901810_LastPrice|| |
| 890.20.10 | 20x2 | 16x2 | 10 | 240 | 10.02 | ||08902010_LastPrice|| |
| 890.20.20 | 20x2 | 18x2 | 10 | 240 | 10.02 | ||08902020_LastPrice|| |
| 890.26.00 | 26x3 | 16x2 | 10 | 160 | 10.02 | ||08902600_LastPrice|| |
| 890.26.10 | 26x3 | 18x2 | 10 | 160 | 10.02 | ||08902610_LastPrice|| |
| 890.26.20 | 26x3 | 20x2 | 10 | 160 | 10.02 | ||08902620_LastPrice|| |
| 890.32.00 | 32x3 | 16x2 | 5 | 120 | 10.02 | ||08903200_LastPrice|| |
| 890.32.10 | 32x3 | 20x2 | 5 | 120 | 10.02 | ||08903210_LastPrice|| |
| 890.32.20 | 32x3 | 26x3 | 5 | 120 | 10.02 | ||08903220_LastPrice|| |
| 890.40.10 | 40x3,5 | 32x3 | 5 | 40 | 10.02 | ||08904010_LastPrice|| |
| 890.50.10 | 50x4 | 32x3 | 5 | 40 | 10.02 | ||08905010_LastPrice|| |
| 890.50.00 | 50x4 | 40x3,5 | 5 | 40 | 10.02 | ||08905000_LastPrice|| |
| 890.63.10 | 63x4,5 | 40x3,5 | 1 | 4 | 10.02 | ||08906310_LastPrice|| |
| 890.63.00 | 63x4,5 | 50x4 | 1 | 4 | 10.02 | ||08906300_LastPrice|| |
Size A-B: Outside Ø x pipe thickness
