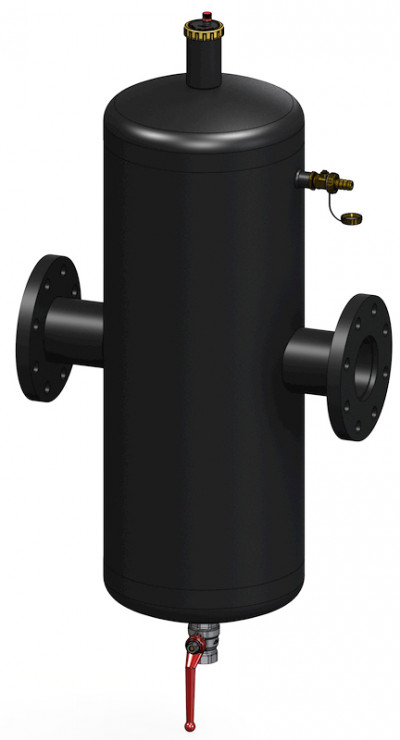

Airterm Dirt
Flanged self-cleaning dirt separator / deaerator
Series 2831.B
Flanged self-cleaning dirt separator / deaerator. Float operation.
| Painted steel body. |
| Valve body and brass degasser. |
| Elastomer degasser seals. |
| PN16 flanged connections. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 10 Bar |
| Max operating temperature 110 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
Certifications:
Flanged self-cleaning dirt separator / deaerator
| Code | Size | Box | Carton | Cat. | € |
| 28310972 | DN 50 | 1 | 1 | 20.02 | ||28310972_LastPrice|| |
| 28311072 | DN 65 | 1 | 1 | 20.02 | ||28311072_LastPrice|| |
| 28311172 | DN 80 | 1 | 1 | 20.02 | ||28311172_LastPrice|| |
| 28311372 | DN 100 | 1 | 1 | 20.02 | ||28311372_LastPrice|| |
| 28311472 | DN 125 | 1 | 1 | 20.02 | ||28311472_LastPrice|| |
| 28311572 | DN 150 | 1 | 1 | 20.02 | ||28311572_LastPrice|| |
Dirt separator + embedded deaerator.
Flange suitable for coupling with counter-flange UNI EN 1092-1.
