Balanflow

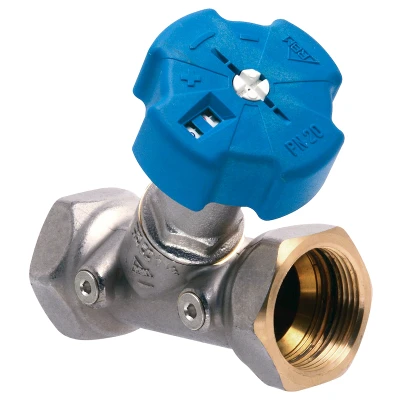

Threaded balancing valve
Series 619.A
Threaded balancing valve, complete with knob indicating the number of turns, and "memory stop" function.
| Body and contact parts in brass. |
| Seals in FKM. |
| Threaded connections FF UNI-EN-ISO 228. |
| Max operating pressure 20 Bar |
| Allowed temperatures -30 ÷ +120 °C |
| Equipercentage regulation |
| Allowed fluid water and water+glycol 50 % |
| Pressure gauge plugs connection G1/8" |
Download
Threaded balancing valve
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 06190350 | G 3/8" | 2,35 | 1 | 6 | 22.01 | ||06190350_LastPrice|| |
| 06190450 | G 1/2" | 3,35 | 1 | 6 | 22.01 | ||06190450_LastPrice|| |
| 06190550 | G 3/4" | 4,00 | 1 | 6 | 22.01 | ||06190550_LastPrice|| |
| 06190650 | G 1" | 11,20 | 1 | 6 | 22.01 | ||06190650_LastPrice|| |
| 06190750 | G 1"1/4 | 13,40 | 1 | 6 | 22.01 | ||06190750_LastPrice|| |
| 06190850 | G 1"1/2 | 19,00 | 1 | 6 | 22.01 | ||06190850_LastPrice|| |
| 06190950 | G 2" | 28,40 | 1 | 6 | 22.01 | ||06190950_LastPrice|| |
Designed for the insertion of pressure plugs for indirect flow rate reading.
