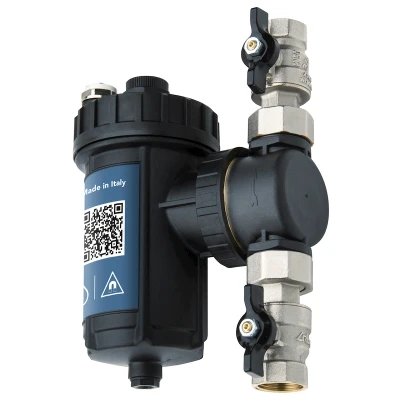

SafeCleaner2
Multifunction polymer magnetic dirt separator
Series 2319
Multifunction polymer magnetic dirt separator, with FF ball valves connection.
| Plastic polymer cartridge holder body. |
| Plastic polymer diverter valve. |
| Stainless steel AISI 304 filtering cartridge. |
| Elastomer hydraulic seals. Threaded connections FF UNI-EN-ISO 228. |
| Max operating pressure 4 Bar |
| Operating temperature 0 ÷ +90 °C |
| Neodymium magnet B = 11000 gauss |
| B(T max) / B(T amb)* < 1% |
| * T max = 130 °C - T amb = 21 °C |
Download
Features:
Certifications:
Multi-function magnetic sludge remover filter, polymer diverter, with FF connection ball valves
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 23190550 | G 3/4" | 6,81 | 1 | 6 | 20.03 | ||23190550_LastPrice|| |
| 23190650 | G 1" | 7,51 | 1 | 4 | 20.03 | ||23190650_LastPrice|| |
| 23190750 | G 1"1/4 | 7,51 | 1 | 4 | 20.03 | ||23190750_LastPrice|| |
