Series 165

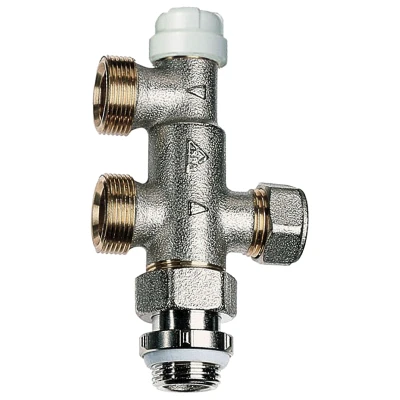

4-way straight diverter valve

Series 165
Straight 4-way diverter valve for single pipe and the double pipe circuits.
Nickel-plated brass body.
Elastomer seals.
Shockproof ABS cap.
Built-in micrometric lockshield valve.
Internal bypass with 50% bore only for single pipe applications.
In-line connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings.
Threaded connections to radiator M UNI-EN-ISO 228 with pre-gasket ogive in PTFE.
Connection for external probe Ø 15 mm.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Download

4-way straight diverter valve for single pipe and double pipe circuits

Code Size Model Box Carton Cat.
01650450* G 1/2" 50% 10 10 21.01 ||01650450_LastPrice||
01600400* G 1/2" 100% 10 10 21.01 ||01600400_LastPrice||

* with RFS

Use fittings with RBM Standard thread for pipe connection.
