Series 179

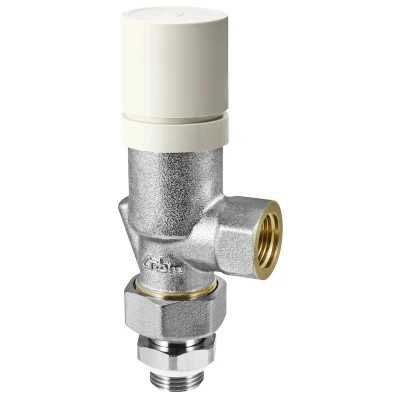

Inverse angle valve with thermostatic option for iron pipe

Series 179
Inverse angle valve with thermostatic option for iron pipe.
Nickel brass body.
Double seal obturator.
Elastomer seals.
Shockproof ABS handwheel.
Threaded angled connection F UNI-EN-ISO 228 for iron pipe.
Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Certifications:

Inverse angle valve with thermostatic option for iron pipe

Code Measure Kv (m³/h) Pack Outer Cat.
179.03.00* G 3/8" 0,99 10 100 21.01 ||01790300_LastPrice||
179.04.00* G 1/2" 0,99 10 100 21.01 ||01790400_LastPrice||

* with RFS
