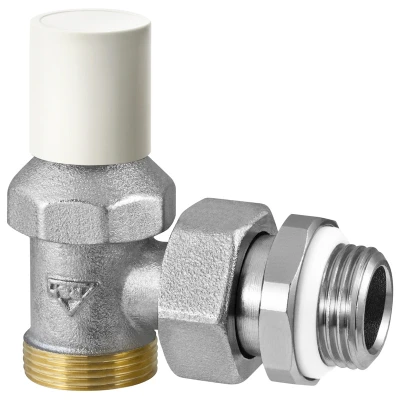

Angle lockshield shut-off and regulating valve for copper or polyethylene pipe
Series 29
Angle lockshield shut-off and regulating valve for copper or polyethylene pipe.
Nickel brass body. |
Elastomer seals. |
Shockproof ABS cap. |
Threaded angled M standard RBM connection for copper, polyethylene, multilayer pipe fittings. |
Connection to threaded terminal M UNI-EN-ISO 228 with pre-gasket ogive in PTFE. |
Max operating temperature 110 °C |
Max operating pressure 10 Bar |
Download
Angle lockshield regulating valve for copper or polyethylene pipe
Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
29.03.00 | G 3/8" | 3,2 | 10 | 100 | 21.01 | ||00290300_LastPrice|| |
29.03.10 | G 3/8" Ø 18 (*) | 3,2 | 10 | 10 | 21.01 | ||00290310_LastPrice|| |
29.04.00 | G 1/2" | 4,0 | 10 | 100 | 21.01 | ||00290400_LastPrice|| |
29.04.10 | G 1/2" Ø 18 (*) | 4,0 | 10 | 10 | 21.01 | ||00290410_LastPrice|| |
(*): Can be fed by Ø18 copper pipes (kit lockshield + reduction code 57.18.00)
