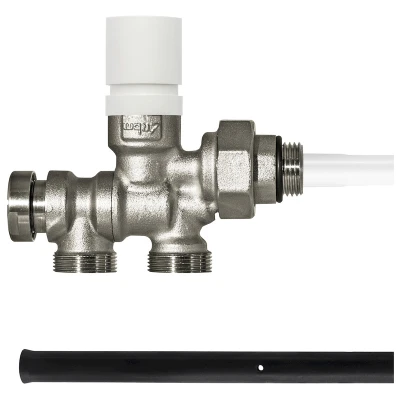

Series 3101

4-way valve with thermostatic option with variable centre distance and pre-adjustment

Series 3101
Valvola termostatizzabile a 4 vie a interasse variabile con o senza preregolazione, per circuiti monotubo.
Nickel brass body.
Built-in micrometric lockshield valve.
Elastomer seals.
Shockproof ABS cap and handwheel.
Polymer probe.
In-line connections, variable centre distance 35 ÷ 40 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings.
Threaded radiator connection M UNI-EN-ISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar
Probe length 110/300 mm
Probe outside diameter 11 mm

Valvola a 4 vie termostatizzabile a interasse variabile senza preregolazione per impianti monotubo

Code Measure Pack Outer Cat.
31010400 G 1/2" 4 16 21.01 ||31010400_LastPrice||
31010500 G 3/4" 4 16 21.01 ||31010500_LastPrice||
31010600 G 1" 4 16 21.01 ||31010600_LastPrice||

Valvola a 4 vie termostatizzabile a interasse variabile con preregolazione per impianti monotubo

Code Power supply Figure Measure Centre distance (mm) Model Ways Calibration (bar) Max. Pwr. (kW) Safety valve coupling Kv (m³/h) Sensitivity (l/h) Flow rate (l/h) DP (kPa) Flow rate (m³/h) Cartridge Scale (bar) Pack Outer Cat.
