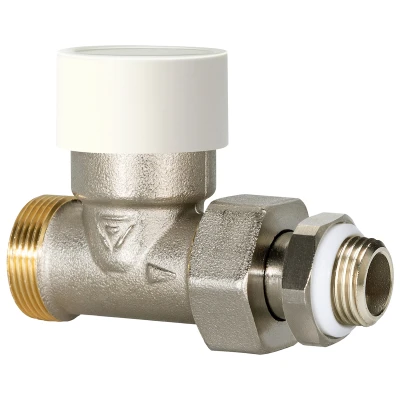

Straight lockshield shut-off and regulating valve for copper or polyethylene pipe
Series 4039
New straight lockshield shut-off and regulating valve for copper or polyethylene pipe.
Nickel brass body. |
Elastomer seals. |
Shockproof ABS cap. |
Threaded straight M standard RBM connection for copper, polyethylene, multi-layer pipe fittings. |
Connection to threaded terminal M UNI-EN-ISO 228 with pre-gasket ogive in PTFE. |
Max operating temperature 110 °C |
Max operating pressure 10 Bar |
Download
Straight lockshield regulating valve for copper or polyethylene pipe
Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
4039.03.00 | G 3/8" | 1,4 | 10 | 100 | 21.01 | ||40390300_LastPrice|| |
4039.04.00 | G 1/2" | 1,4 | 10 | 100 | 21.01 | ||40390400_LastPrice|| |
(*): Can be fed by Ø18 copper pipes (kit lockshield + reduction code 57.18.00)
